Reduced Oil Pressure Switch -F378-: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing, refer to AIR FILTER HOUSING .

-- Disconnect the connector -arrow-.

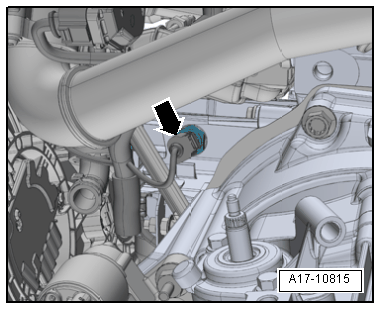

Fig 1: Identifying Electrical Connector
GWWA17-10815Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE: Place a cloth underneath to catch any escaping engine oil.

-- Remove the Reduced Oil Pressure Switch -F378-.
