Shift Cable And Selector Cables: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the shift mechanism. Refer to SHIFT MECHANISM .

-- Bend up the tabs -arrows- on the shift mechanism base plate using a screwdriver and remove the base plate. Only the straps on the left side of the base plate are shown in the illustration.

Fig 1: Bend The Tabs

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the gasket.

-- Remove the lock washers -2 and 3-.

Fig 2: Identifying Shift Lever And Selector Cable

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the shift cable -1- and the selector cable -4- from the transmission shift lever and relay lever using a screwdriver.

-- Remove the shift cable and selector cable from the shift housing.

Release the retainers -A- for the shift and selector cables -B- as follows:

Fig 3: Identifying Sequence To Release Retainers For Shift And Selector Cables

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Push the sleeve forward as far as it will go in the -direction of arrow 1-.
Turn the sleeve to the right as far as it will go in the -direction of arrow 2- until it engages.

-- Remove the retainers from the cables.

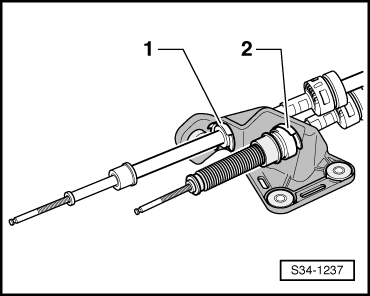

-- Remove the lock washers -1 and 2-.

Fig 4: Identifying Lock Washers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cable bracket from the cables.
