Shift Knob, Boot And Noise Insulation: Removing

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

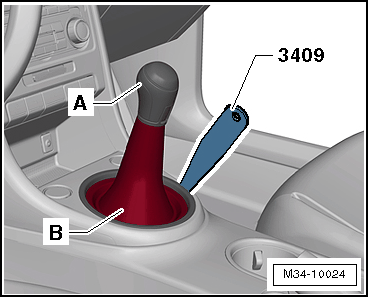

-- Unclip the boot -B- and frame from the center console using the Trim Removal Wedge 3409.

Fig 1: Identifying Knob And Boot

-- Fold the boot and frame upward over the shift knob -A- .

-- Open the clamp -arrow- and remove the shift knob and boot.

Fig 2: Identifying Clamp

-- Remove the noise insulation -1- , if equipped.

Fig 3: Identifying Noise Insulation
