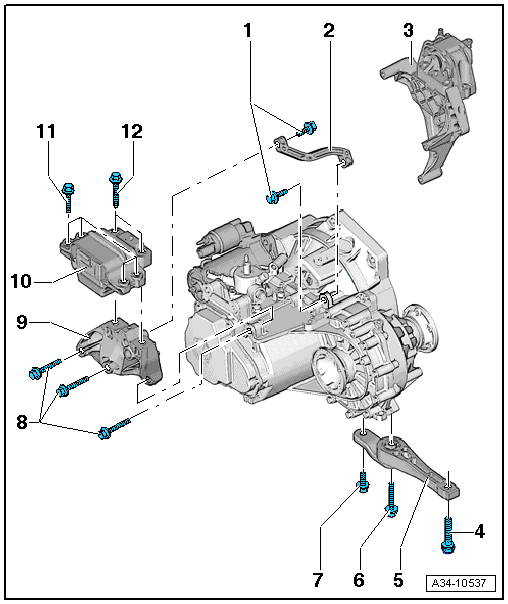

Engine And Transmission Mount Overview
WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm + 90° (1/4) additional turn.
- Tightening sequence, refer to Fig 3.
- Always replace after removing.
- For the transmission support to the transmission mount bracket and the transmission.
- Transmission Support
- To the transmission mount bracket and the transmission.
- Engine Mount with Engine Mount Bracket
- Refer to FASTENER TIGHTENING SPECIFICATIONS . .
- Bolt
- Pendulum support to subframe.
- Refer to Special Tools .
- Pendulum Support
- Refer to Special Tools .
- Bolt
- Pendulum support to transmission.
- Refer to Special Tools .
- Bolt
- Pendulum support to transmission.
- Refer to Special Tools .
- Bolt
- 40 Nm + 90° (1/4) additional turn.
- Tightening sequence, refer to Fig 4.
- Always replace after removing.
- Transmission mount bracket to transmission.
- Transmission Mount Bracket
- Transmission Mount
- Adjusting, refer to FASTENER TIGHTENING SPECIFICATIONS .
- Checking the adjustment, refer to SUBFRAME MOUNT, CHECKING ADJUSTMENT .
- Bolt
- Transmission mount to chassis.
- Refer to FASTENER TIGHTENING SPECIFICATIONS .
- Bolt
- 60 Nm + 90° (1/4) additional turn.
- Tightening sequence, refer to Fig 2.
- Always replace after removing.
- Transmission mount to transmission mount bracket.
-- Replace the bolts -arrows- after removing.
-- Tighten the bolts hand tight.
-- Tighten the bolt to specification.
-- Replace the bolts -arrows- after removing.
-- Tighten the bolts hand tight.
-- Tighten the bolt to specification.
-- Replace the bolts -arrows- after removing from the transmission mount bracket -A- .
-- Tighten all the bolts hand tight.
-- Tighten the bolts to specification.
