Throttle Valve Control Module: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the noise insulation. Refer to DESCRIPTION AND OPERATION .

-- Remove the air guide hose by loosening hose clamps -1- and -2-.

Fig 1: Identifying Hose Clamps

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows-.

Fig 2: Identifying Charge Air Pipe

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Free up the coolant hose -3-.

-- Loosen the hose clamp -2-.

-- Disconnect the connector -1- on the charge air pressure sensor -G31- and then remove the air guide pipe.

-- Disconnect the connector -2-.

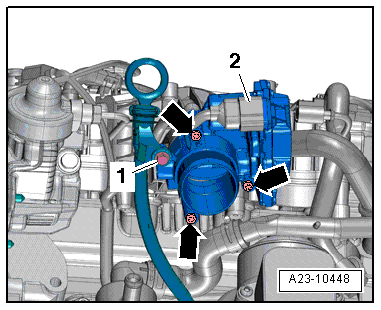

Fig 3: Identifying Oil Dipstick Guide Tube Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- for the oil dipstick guide tube.

-- Remove the bolts -arrows- and the Throttle Valve Control Module -J338-.
