Heated Oxygen Sensor -G39-: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

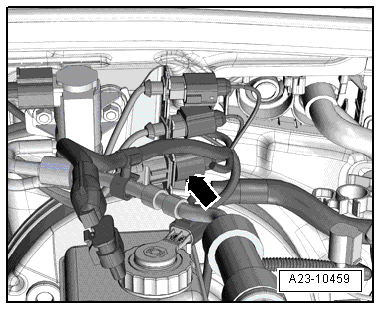

Fig 1: Identifying Connector For Heated Oxygen Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Disconnect the connector -arrow- for the Heated Oxygen Sensor -G39-.

-- Free up the wiring harness.

-- Remove the Heated Oxygen Sensor -G39- -3- using a tool from the Oxygen Sensor Ring Spanner Set 3337.

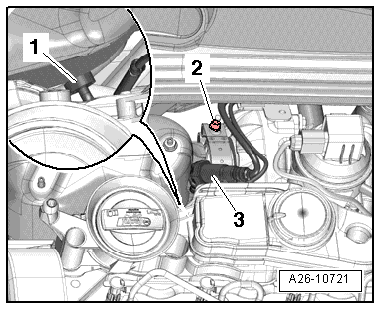

Fig 2: Identifying Clamp And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
