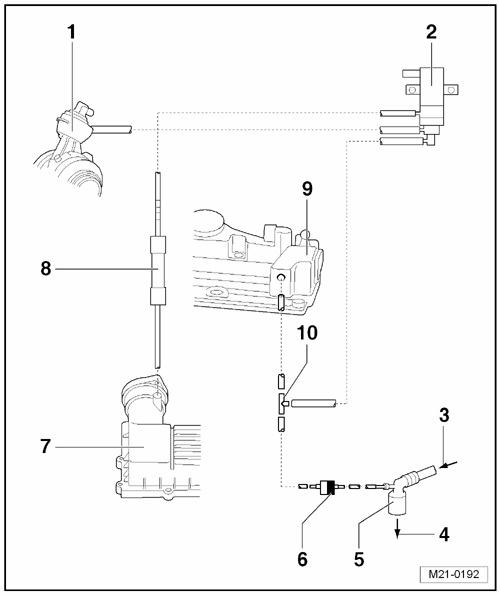

Vacuum System Connection Diagram
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When routing the vacuum lines, make sure they are not kinked, twisted or pinched. They could disable the vehicle.
- Vacuum Diaphragm
- At turbocharger
- With the charge pressure actuator position sensor -G581-
- Removing and installing. Refer to REPLACING THE PRESSURE CELL WITH THE Charge Pressure Actuator Position Sensor -G581- .
- Wastegate Bypass Regulator Valve -N75-
- From Brake Booster
- To the Vacuum Pump
- Connection Piece
- On the vacuum pump
- Check Valve
- Pay attention to the installed position: the white connection faces the junction piece. See -item 10-
- Checking SUPPLY LINE, VACUUM RESERVOIR AND CHECK VALVE, CHECKING , Vacuum System, Checking
- Air Filter
- Muffler
- Cylinder Head Cover
- Junction Piece
