2.5L SRE Engines: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the screws on the air intake -arrow A-.

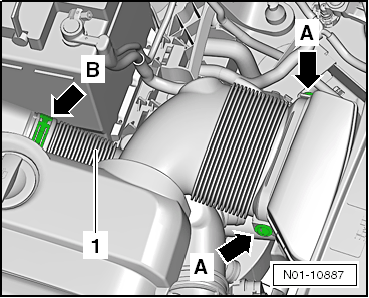

Fig 1: Identifying Screws On Air Intake -Arrow A- And Mass Airflow Sensor -Arrow B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tension on the clamps on the mass airflow sensor -arrow B- using Spring Clip Pliers VAS 5024A and then slide clamps to the rear.

-- Remove the air intake hose -1-.

-- Loosen the engine cover at the attaching points -arrows A -.

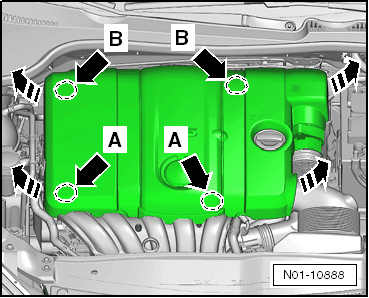

Fig 2: Identifying Engine Cover Attaching Points -A And B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lift the engine cover at the front.

-- Loosen the engine cover at the attaching points -arrows B-.

-- Remove engine cover upwards.
