2.5L SRE Engines: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Coil Puller -T40039-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

To remove spark plugs, place Puller - Ignition Coil T40039 on topmost thick rib -arrow- of ignition coils with power output stages.

If lower ribs are used, these can be damaged

-- Remove the "upper" engine cover. Refer to UPPER ENGINE COVER, REMOVING AND INSTALLING .

Spark plugs are located under ignition coils with power output stages.

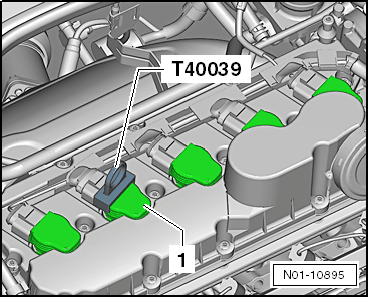

Fig 2: Identifying Removal Ignition Coils Using Ignition Coil Puller T40039

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove all the ignition coils with power output stage -1- using the Puller - Ignition Coil T40039.

NOTE:

When pulling out ignition coils with power output stages, the wiring and connectors for ignition coils can remain connected.

Note the installed position of ignition coils with power output stages!

-- Carefully move the ignition coil with power output stage, with the wires still connected, to the side.

CAUTION:

Be careful to not kink or damage the wiring.

-- Remove spark plugs with Spark Plug Removal Tool 3122 B.

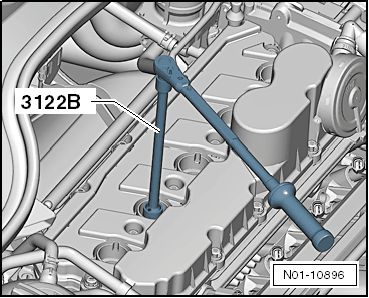

Fig 3: Identifying Removal Of Spark Plugs Using Spark Plug Wrench 3122 B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
