2.0L TSI Engines: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ignition Coil Puller -T40039-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Perform the following procedure:

NOTE:

To pull off spark plugs, place Puller - Ignition Coil T40039 on topmost thick rib -arrow- of ignition coils with power output stages.

If lower ribs are used, these can be damaged

-- Remove the "upper" engine cover. Refer to UPPER ENGINE COVER, REMOVING AND INSTALLING .

Spark plugs are located under ignition coils with power output stages -2-.

Fig 2: Identifying Ignition Coils

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Note the installed position of ignition coils with power output stages!

-- Pull all of the ignition coils approximately 30 mm out of cylinder head in the direction of the arrow using the Puller - Ignition Coil T40039.

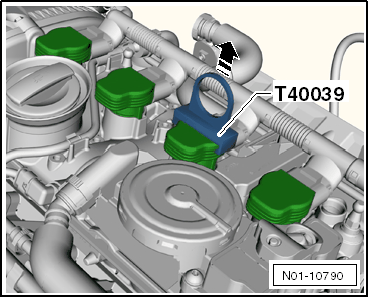

Fig 3: Identifying Position And Direction To Use Ignition Coil Puller

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the connector in the direction of the ignition coils with the power output stages. Press the catch by hand and remove the connector -arrows-.

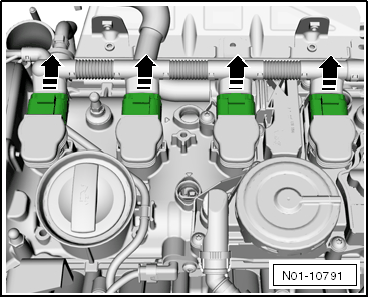

Fig 4: Identifying Direction To Push Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove spark plugs with Spark Plug Removal Tool 3122 B.

Fig 5: Identifying Spark Plug Wrench -3122 B-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Plug designation and tightening torque refer to [For engine(s) CPRA, CPKA, CPLA, CPPA] Specifications [For engine(s) CVCA] Specifications [For engine(s) CCTA, CBFA] Specifications [For engine(s) CBUA] Specifications

Follow all disposal regulations.
