Lower Engine Compartment Cover, Removing And Installing: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

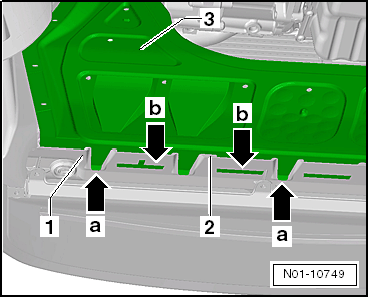

Fig 1: Identifying Direction To Slide Noise Insulation -3- Into Bottom Of Lock Carrier -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the noise insulation -3- into the bottom of the lock carrier -2- as shown in the figure.

-- The narrow latches -arrow a- must be slid below or wide latches -arrow b- slid above the lock carrier edge -2-.

-- Retaining tabs must engage over wide tabs in lock carrier holes when doing so.

-- Tighten the bolts -1- to the tightening specification.

Fig 2: Identifying Bolts -Arrows- To Loosen/Tighten

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sheet metal screws, tightening specification: 2 Nm
