"Next Service" LABEL, APPLYING

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The "Next Service" label applies to vehicles through MY 2013. For vehicles from MY 2014 the label is discontinued.

-- "Next Service" label: Check off an oil change service or an inspection service (next service due) and enter the date and the odometer reading.

Fig 1: Identifying "Next Service" Label (11/6/2009-)
GWWN01-10998Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- "Next Service" label: Check off the oil change service or Inspection service or the legally required test, for example, inspecting the gas system, (whichever one is due next) and enter the date and mileage (kilometers).

Service intervals. Refer to SERVICE TABLES .

-- Apply the label to the B-pillar on the driver side -arrow-.

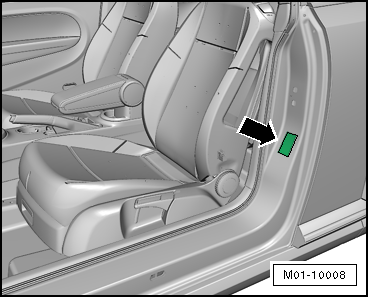

Fig 2: Applying Label To B-Pillar On Driver Side
GWWM01-10008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
