Overview - Dual Clutch
WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
Brief Description
- The clutch has two disc packs. The outer, larger disc pack is called "K 1" (clutch 1). The "K 1" shifts reverse gear and >>1st<<, >>3rd<< and >>5th<< gears. The inner, smaller "K 2" (clutch 2) shifts the gears >>2<<, >>4<< and >>6<<.
- Assembling the dual clutch requires special care, because all of the components were balanced to each other at the manufacturer. If the parts are rotated from their original position during assembly, imbalances will occur, reducing the shift comfort and the life-span.

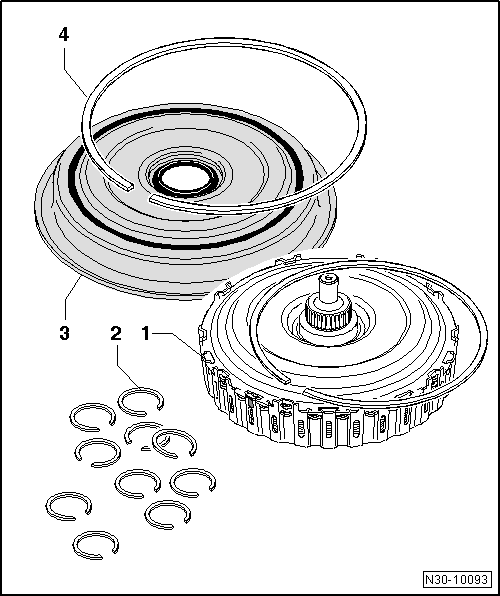

Replacement Part Package
- Dual Clutch with Circlip
- Circlip
- When installing the clutch, the thickness of the circlip must be determined. Refer to Identifying the Circlip for the Dual Clutch. .
- Quantity: 10, with various thicknesses for adjusting
- Clutch End Cover
- Clutch End Cover Circlip
Individual Parts of the Disassembled Dual Clutch
CAUTION:
- This illustration is only an overview of the components. The dual clutch must not be disassembled at this time since all clutch discs were installed weighted to each other.
- If the drive plate is loosened, the clutch discs in the dual clutch can slip out of place and the dual clutch may not be properly set then during installation.
- DSG® Clutch/Clutch Housing
- Outer clutch plate carrier
- Gaskets
- Quantity: 4
- Inner Clutch Plate Carrier
- Do not remove
- Outer Clutch Plates
- Quantity: 4
- Inner Clutch Plates
- Quantity: 4
- Thrust Washer
- Circlip
- If the circlip was removed in order to reinsert the plates, it should be replaced with a new ring of the same thickness.
- Circlip
- Redetermine after installing a new clutch thickness. Refer to Identifying the Circlip for the Dual Clutch.
- Drive Plate
- Circlip
- Replace after removing
