Special Tools

WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

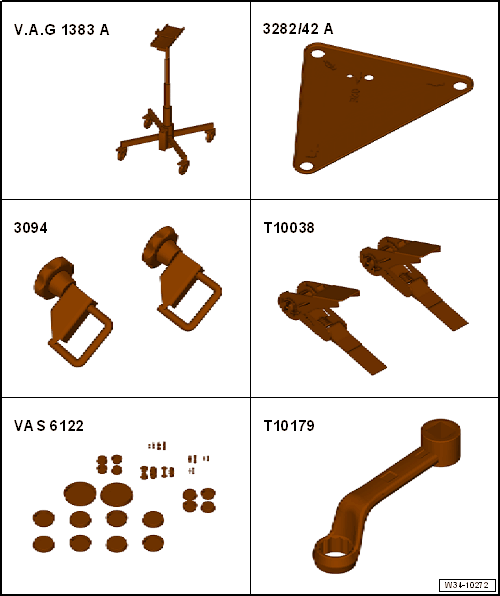

Special tools and workshop equipment required

Engine and Gearbox Jack: VAS6931
Transmission Support - Mounting Plate 42A: 3282/42A
Hose Clamps - Up To 25 mm: 3094
Tensioning Strap: T10038
Engine Bung Set: VAS6122
Insert Tool - 18mm: T10179

Fig 1: Identifying Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Engine Support Bridge: 10-222A
Engine/Gearbox Support Shackle (2 pc.): 10-222A/12
Engine Support Bridge - Engine Support 31: 10-222A/31
Engine Support - Basic Set: T40091
Engine Support - Supplement Kit: T40093A
Transmission Support: 3282

Special tools and workshop equipment required

Used Oil Collection and Extraction Unit: SMN372500

Fig 2: Identifying Used Oil Collection and Extraction Unit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Wrench - Pump/Injector Long Reach: T10054

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket - Xzn 14: T10061

Fig 3: Identifying Socket
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Speed Sender Release Tool : T10465

Fig 4: Identifying Release Tool T10465
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly Tool: T10534

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Puller - Crankshaft/Power Steering Seal: T20143

Fig 5: Crankshaft / Power Steering Seal Puller
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clip Pliers: VAG1275A

Fig 6: Identifying Hose Clip Pliers
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1331 5-50Nm: VAG1331

Fig 7: Identifying Torque Wrench
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oil Filler: VAS6262A

Fig 8: Identifying Oil Filling Adapter - VAS 6262 A-
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Oil Filler: VAS6262A

Fig 9: Identifying Oil Filler Adapter
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Also Oil Filler - Adapter 6: VAS6262/6 for some fluid containers

Fig 10: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Plate: VW309A

Fig 11: Identifying Holding Plate
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Fixture: VW313

Fig 12: Identifying Holding Fixture
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support: VW353

Fig 13: Identifying Transmission Support
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Press Piece - Shift Rod/Alternator: VW423

Fig 14: Identifying Press Piece - Shift Rod/Alternator
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Trim Removal Wedge: 3409

Fig 15: Identifying Trim Removal Wedge
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Not illustrated:
Transportation Lock: T10404
