Rear Muffler, Removing And Installing, Torsion Beam Suspension

WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Pneumatic Body Saw:VAS6780 or
Chain Pipe Cutter:VAS6254
Torque Wrench 1331 5-50 Nm: VAG1331 (not pictured)
Protective eyewear
Protective clothing

NOTE:

A separating point has been provided in the connecting pipe for removing, installing and replacing the front and rear muffler.

The separating point is marked by depressions around the circumference of the exhaust pipe.

Disconnecting

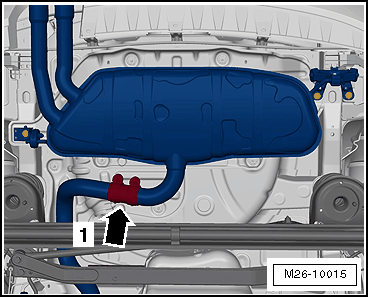

Fig 1: Identifying Separating Point

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Cut the exhaust pipe at a right angle at the separating point -arrow 1-, for example using a : VAG1523A or : VAS6254 .

Connecting

Fig 2: Identifying Separating Point

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

A second technician is required for tightening the rear clamping sleeve (repair clamping sleeve).

-- Secure the front muffler in the mounts. The front clamp remains loosely connected to pipes.

-- Align the rear muffler horizontally and hold it in this position.

-- Position the rear clamping sleeve with both outer markings and tighten.

-- Align the rear muffler without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .

Clamping sleeve installation position and tightening specification. Refer to CLAMPING SLEEVE INSTALLATION POSITION .

Tightening Specifications

Refer to OVERVIEW - MUFFLER
