Rear Muffler, Removing And Installing, Multi-Link Suspension: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Cabriolet

-- Remove the subframe crossbrace -3-. Refer to TENSION STRUTS, REMOVING AND INSTALLING (CONVERTIBLE) CROSSBRACE Rear Axle .

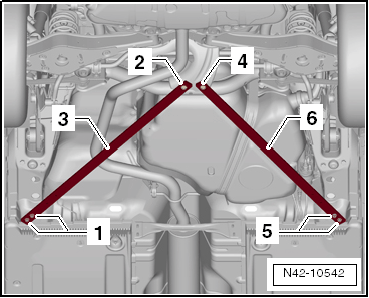

Fig 1: Identifying Subframe Crossbrace

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the exhaust system tight and push the suspended mounts out of the brackets.

Continuation for All Vehicles

-- Loosen the bolts on the rear muffler and remove the exhaust system.
