Overview - Muffler, Multi-Link Suspension, Sedan
WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

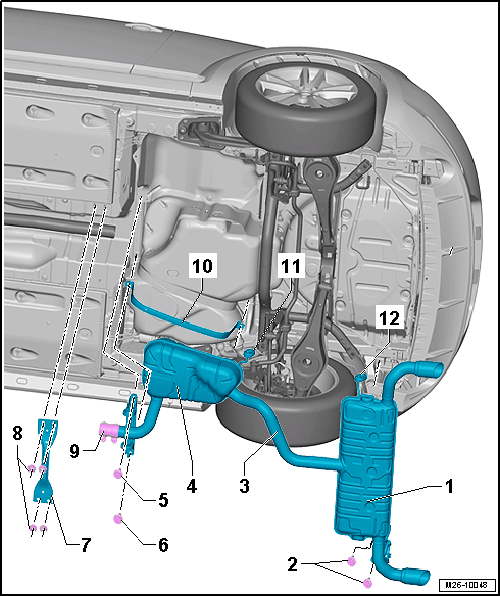

- Rear Muffler
- Installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION
- Removing and installing. Refer to REAR MUFFLER, REMOVING AND INSTALLING, MULTI-LINK SUSPENSION
- Bolt
- 25 Nm
- Replace after removing
- Separating Point
- Separating location for repairing
- Identified on exhaust pipe by an impression
- Cut the exhaust pipe at a right angle at the separating point using the : VAG1523A or : VAS6254 . Refer to CLAMPING SLEEVE INSTALLATION POSITION .
- Center Muffler
- Installing without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION
- Bolt
- 25 Nm
- Replace after removing
- Exhaust system bracket to body
- Bolt
- 25 Nm
- Replace after removing
- Front tensioning strap to body
- Center muffler bracket to body
- Rear Tunnel Brace
- Removing and installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
- Nuts
- Tunnel Bridge
- Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
- Clamping Sleeve
- Mounting Strap
- Fuel tank to body
- Bracket
- Replace if damaged
- Bracket
- Replace if damaged
