Radiator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the fan shroud. Refer to FAN SHROUD, REMOVING AND INSTALLING .

-- Open the clip -arrow-.

Fig 1: Identifying Upper Radiator Coolant Hose Retaining Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the upper radiator coolant hose -1-.

-- Remove radiator bolts -arrows- and remove radiator -1- downward.

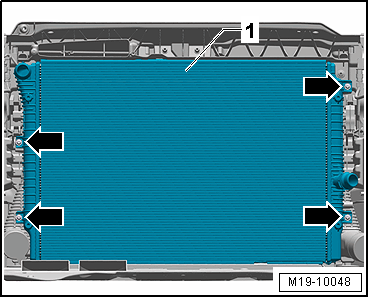

Fig 2: Identifying Radiator Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
