Overview - Radiator/Coolant Fan

WARNING: This page is about a different car, the 2017 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

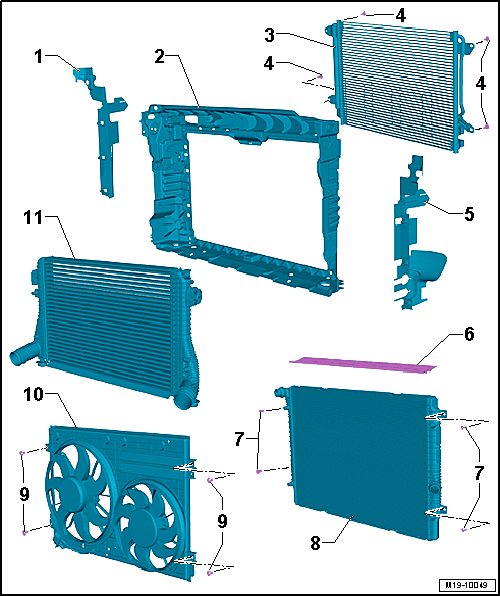

Fig 1: Exploded View Of Radiator/Radiator Fan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Side Air Duct
- Left
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
Lock Carrier
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
Condenser
- Removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
Bolts
- 8 Nm
Side Air Duct
- Right
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
Seal
- Replace if damaged
Bolts
- 8 Nm
Coolant Cooler
- Change the coolant after replacing
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
Bolts
- 8 Nm
Fan Shroud
- Removing and installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
Charge Air Cooler
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
