Special Tools

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Connector Test Set VAG 1594 C

Fig 1: Connector Test Set VAG 1594C
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hose Clamps - Up To 40mm 3093

Fig 2: Hose Clamps 3093
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Shop Crane - Drip Tray VAS 6208

Fig 3: Drip Tray For Shop Crane VAS 6208
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine Bung Set VAS 6122

Fig 4: Engine Bung Set Plugs VAS 6122
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Trim Removal Wedge 3409

Fig 5: Identifying 3409 Wedge
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

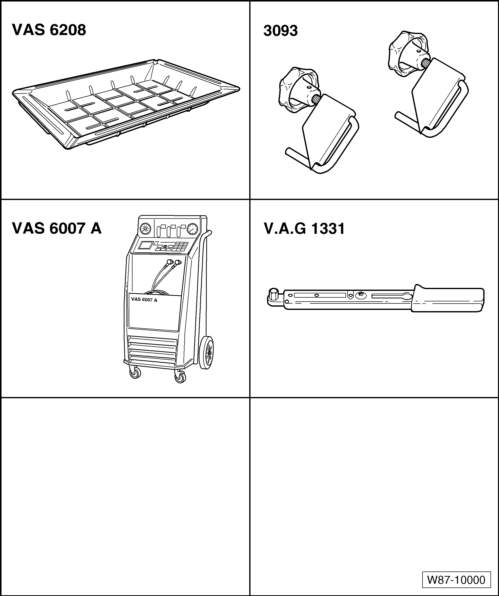

Fig 6: Identifying Shop Crane - Drip Tray, Hose Clamps, A/C Service Station And Torque Wrench

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special Tools And Workshop Equipment Required

Shop Crane - Drip Tray VAS 6208
Hose Clamps - Up To 40 mm 3093
A/C Service Station VAS 6007A or newer model
Torque Wrench 5-50 Nm VAG 1331
