Special Tools

Special tools and workshop equipment required

• Dial Gauge Holder VW 387
  Fig 1: Dial Gauge Holder VW 387

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Dial Gauge 0-10 mm VAS 6079
  Fig 2: Dial Gauge 0-10 mm VAS 6079

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Locking Pin T10060 A
  Fig 3: Identifying Locking Pin T10060 A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Repair Set, Ribbed Belt with Assembly Tool.
• Counter Support 3067
  Fig 4: 3067 Counter-Hold Tool

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 5: Identifying VW 382/7, VW 385/17 And VAS 6079

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Measuring bar VW 382/7 from Special Socket and Measuring Tools VW 382
• 50 mm magnetic plate VW 385/17 from Universal Measuring Tool VW 385
• Dial Gauge 0-10 mm VAS 6079

Fig 6: Identifying Engine Support Bridge Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
• Spindle 10 - 222 A /11
• Shackle 10-222 A/12
• Holder 10 - 222 A /7
• Support Bracket 10 - 222 A /28
• Support Bracket 10 - 222 A /31
• Rail with Holes T40091/2 from Engine Support Basic Set T40091
• Mount T40093/5 from Engine Support Supplement Set T40093A
• 2 x Engine Support Adapter 10 - 222 A /28-1
• 2 x Square Pipe T40091/1 from Engine Support Supplement Set T40093A.
• 2 x Square Pipe T40091/1 from Engine Support Supplement Set T40093A.
• 2 x Movable Joint T40093/4 from Engine Support Supplement Set T40093A.

Fig 7: Identifying Special Tools -- Crankshaft Seal, Ribbed Belt Side, Replacing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Seal Puller 3203
• Handle-Hold Driveshaft Flange 3415
• Assembly Tool T10053
• Torque wrench 5-50 Nm V.A.G 1331
• Torque wrench 40-200 Nm V.A.G 1332

Fig 8: Identifying Special Tools - Sealing Flange - Belt Pulley Side, Removing And Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Handle-Hold Driveshaft Flange 3415
• Assembly Tool T10053
• Torque wrench 5-50 Nm V.A.G 1331
• Torque wrench 40-200 Nm V.A.G 1332
• Hand drill with plastic brush attachment
• Silicone Sealant D 176 404 A
• Flat scraper

Fig 9: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Assembly Tool T10134
• Torque Wrench 5-50 Nm V.A.G 1331
• Tool Insert AF 24 V.A.G 1332/11

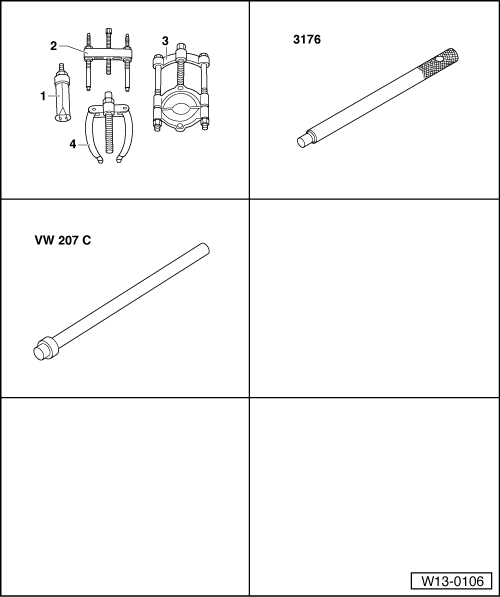

Fig 10: Identifying Special Tools - Needle Bearings For Crankshaft, Pulling Out And Driving In

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. -1- KUKKO 21/2 and -4- KUKKO 22/1
2. Centering Mandrel 3176
3. Drift VW 207 C
