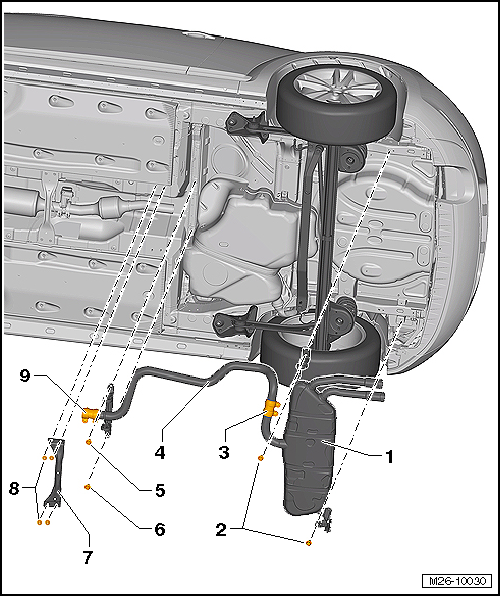

Muffler Overview, Sedan
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Muffler
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Disconnect rear muffler, refer to EXHAUST PIPES/MUFFLERS, SEPARATING, SEDAN
- Bolts
- 25 Nm
- Clamping Sleeve
- Separating location for repairing
- Installation position and tightening torque. Refer to CLAMPING SLEEVE LOCATIONS .
- Connecting Pipe
- Attached securely to the rear muffler when installed for the first time
- Separating location for repairing
- From reducing catalytic converter
- Bolt
- Threaded connection, exhaust system to the body
- 25 Nm
- Bolts
- Additional threaded connection on the securing strap for the fuel tank
- 25 Nm
- Tunnel Bridge
- Refer to Removal and Installation .
- Nuts
- Tunnel bridge
- Refer to Removal and Installation .
- Clamping Sleeve
- Installation position and tightening torque. Refer to CLAMPING SLEEVE LOCATIONS .
- For repairs
