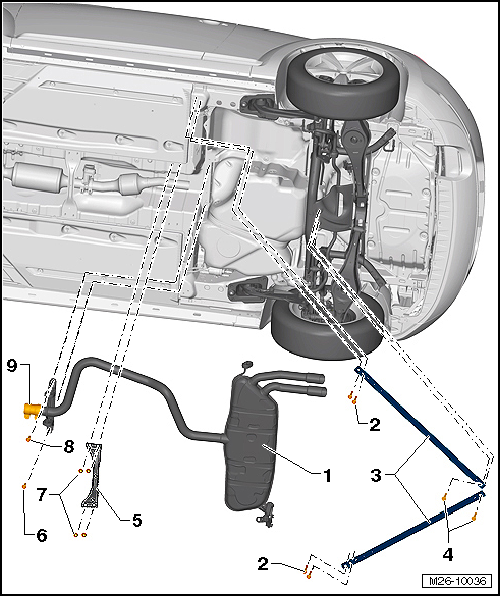

Muffler Overview, Convertible
WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Muffler
- Align the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Rear Muffler, Removing and Installing, refer to REAR MUFFLER, CONVERTIBLE
- Bolts
- Front to the body
- Subframe crossbrace. Refer to Removal and Installation
- Crossbrace
- For the subframe
- Removing and Installing. Refer to Removal and Installation .
- Bolts
- In the rear on the multi-link suspension
- Subframe crossbrace. Refer to Removal and Installation
- Tunnel Bridge
- Refer to Removal and Installation .
- Bolt
- Threaded connection fuel tank and exhaust system
- 25 Nm
- Nuts
- Tunnel bridge
- Refer to UNDERBODY PANELS OVERVIEW .
- Bolt
- Threaded connection, exhaust system to the body
- 25 Nm
- Clamping Sleeve
- Installation position and tightening torque. Refer to CLAMPING SLEEVE LOCATIONS .
