OVERVIEW - TURBOCHARGER, COOPER Charge Pressure Actuator -V465-

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

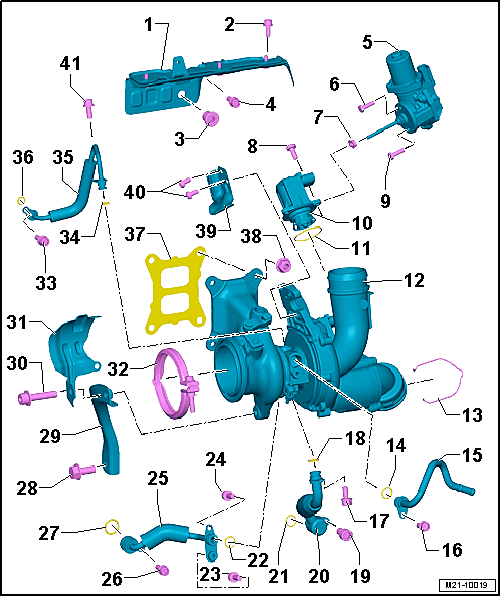

Fig 1: Identifying Turbocharger (Cooper) Overview
GWWM21-10019Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Heat Shield
  2. Bolt
    • 9 Nm
  3. Bolt
    • 20 Nm
  4. Bolt
    • 9 Nm
  5. Charge Pressure Actuator -V465-
    • Cooper type
    • Can be replaced only with the turbocharger, refer to TURBOCHARGER .
  6. Bolt
    • Do not remove the Charge Pressure Actuator -V465-.
    • Replace turbocharger after loosening bolt.
  7. Nut
    • 7 Nm
  8. Bolt
    • 7 Nm
  9. Bolt
    • Replace turbocharger after loosening bolt.
    • Do not remove the Charge Pressure Actuator -V465-.
  10. Turbocharger Recirculation Valve -N249-
  11. O-Ring
    • Replace after removing
  12. Turbocharger
  13. Spring Clip
  14. O-Ring
    • Replace after removing
    • Coat with coolant
  15. Coolant Supply Line
  16. Bolt
    • 9 Nm
  17. Bolt
    • 9 Nm
  18. O-Ring
    • Replace after removing
    • Coat with engine oil
  19. Bolt
    • 25 Nm
  20. Oil Return Pipe
  21. O-Ring
    • Replace after removing
    • Coat with engine oil
  22. O-Ring
    • Replace after removing
    • Coat with coolant
  23. Bolt
    • 9 Nm
  24. Bolt
    • 9 Nm
  25. Coolant Supply Line
  26. Bolt
    • 9 Nm
  27. O-Ring
    • Replace after removing
    • Coat with coolant
  28. Bolt
    • 30 Nm
  29. Support Brace
  30. Bolt
    • 30 Nm
    • Lubricate the thread with hot bolt paste before loosening and installing.
  31. Heat Shield
  32. V-clamp
    • 15 Nm
    • Replace after removing
  33. Bolt
    • 9 Nm
  34. O-Ring
    • Replace after removing
    • Coat with engine oil
  35. Oil Supply Line
  36. O-Ring
    • Replace after removing
    • Coat with engine oil
  37. Seal
    • Replace after removing
  38. Nut
    • 25 Nm
    • Replace after removing
  39. Heat Shield
  40. Bolt
    • 4.5 Nm
  41. Bolt
    • 9 Nm
