Rear Brakes, Drum Brake

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

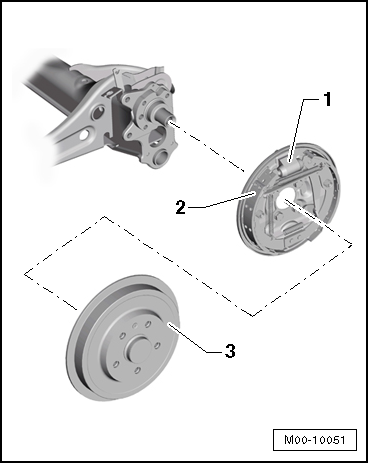

Fig 1: Identifying Rear Brakes (Drum Brake)

Item	PR number		1KG
1	Wheel brake cylinder	mm	20
2	Brake pad, width	mm	32
	Brake pad, thickness	mm	5
	Brake pad, minimum thickness	mm	2.5
3	Brake drum	diameter in mm	230
3	Brake drum, wear limit	diameter in mm	231.5
