Front Side Airbag With Igniter: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow the General Safety Precautions when working with airbags, belt tensioners and battery cut-out units (pyrotechnic components). Refer to SAFETY PRECAUTIONS .

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the left front seat. Refer to FRONT SEAT .

-- Remove the trim on the tunnel side. Refer to TUNNEL-SIDE SEAT TRIM .

-- Remove the backrest adjustment wheel. Refer to BACKREST ADJUSTMENT WHEEL .

-- Remove the seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTMENT HANDLE .

-- Remove the trim on the door sill side. Refer to DOOR SILL SIDE SEAT TRIM .

-- Remove the backrest. Refer to FRONT BACKREST .

-- Remove the cover and the backrest cushion. Refer to BACKREST COVER AND CUSHION .

Fig 1: Identifying Connector, Side Airbag, Wire And Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -1- from the side airbag -2-.

-- Remove the wire -3- from the tabs -arrows-.

-- Remove the screw -4-.

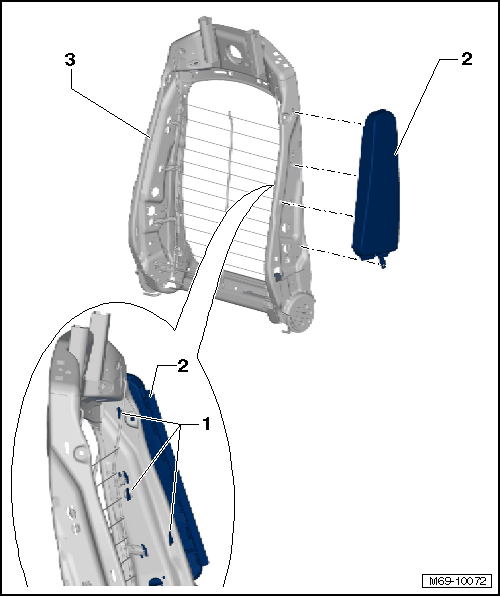

Fig 2: Identifying Retainer, Side Airbag And Backrest Frame

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the retainer -1- for the side airbag -2- from the backrest frame -3-.

-- Remove the side airbag -2- from the backrest frame -3-.
