Front Side Airbag With Igniter: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Install in reverse order of removal. Observe the following when doing so:

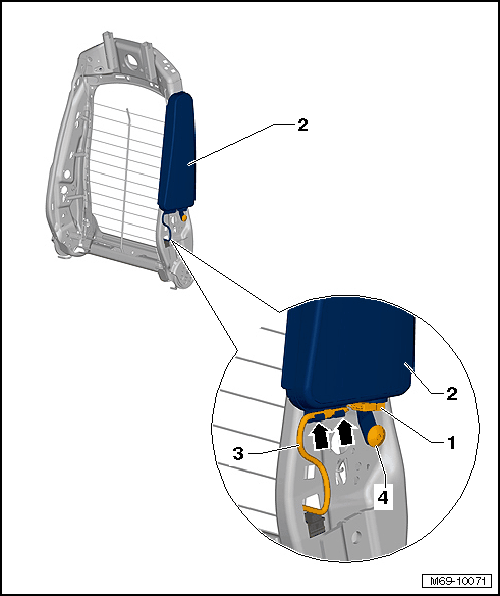

Fig 1: Identifying Connector, Side Airbag, Wire And Screw
GWWM69-10071Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hook the wire -3- in the tabs -arrows-.

-- Connect the connectors -1- to the side airbag -2-.

-- Turn on the ignition.

WARNING: Make sure that no persons are in the vehicle.

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
