Rear Outer Three-Point Seat Belt Overview, Convertible

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

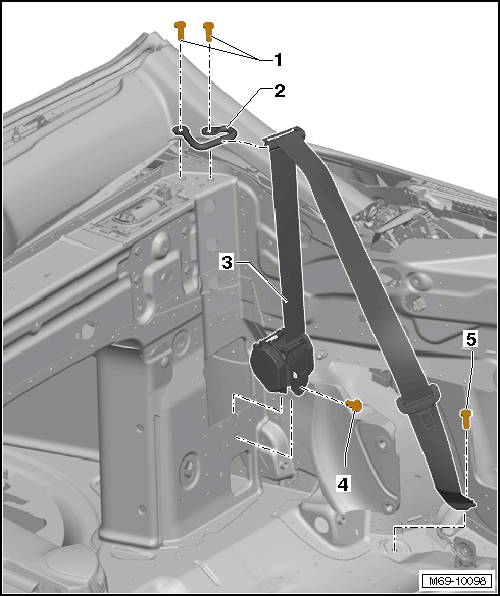

Fig 1: Identifying Rear Outer Three-Point Seat Belt Components Overview (Convertible)
GWWM69-10098Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 40 Nm
  2. Seat Belt Guide
  3. Automatic Belt Retractor
  4. Bolt
    • 40 Nm
    • Micro-encapsulated, replace after each loosening
  5. Bolt
    • 40 Nm
