Ribbed Belt TENSIONER, Drive Generator, Pump: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Follow repair instructions. Refer to GENERAL INFORMATION .

-- Remove the ribbed belt. Refer to Removing Ribbed Belt .

-- Loosen the tensioner -1- bolt -2- and remove the tensioner.

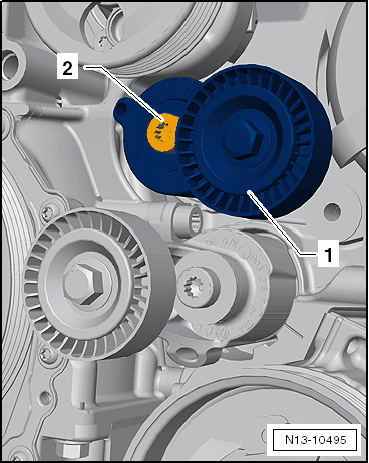

Fig 1: Belt Tensioner And Bolt
GWWN13-10495Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
