Rear Bumper Cover: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Slight changes may have to be made to removal and installation procedures of rear bumper cover, depending upon equipment installed in vehicle.

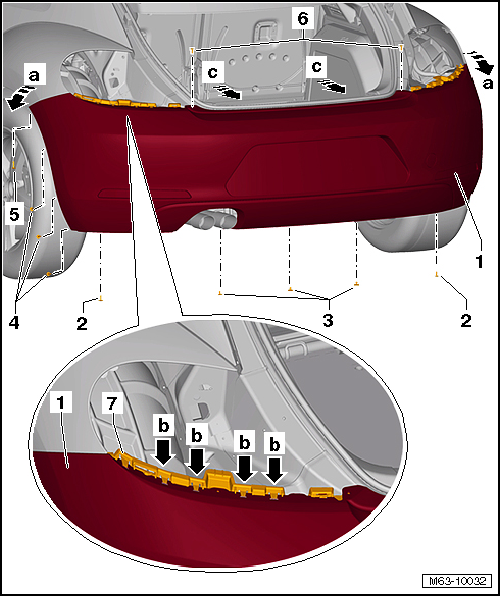

Fig 1: Identifying Expanding Rivets And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the expanding rivets -3- from below.

-- Remove the left and right bolt -2- from underneath as well as the bolts -4- in the wheel housing.

-- Remove the bolts -5- inside the wheel housing on the left and right.

NOTE: An expanding rivet can also be installed on some vehicles.

-- Remove the left and right tail lamps, refer to[For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CPRA, CBTA, CPKA, CPLA, CJAA, CBUA, CPPA, CCTA, CBFA] Removal and Installation .

-- Remove the bolt -6- under the left and right tail lamps.

A second technician is required for the rest of the removal procedure.

-- Remove the rear bumper cover -1- from the striker pin on the left and right guide -7- -arrows a-.

-- Release the striker pins on the left and right guide near the tail lamps -arrows b-.

-- Remove the rear bumper cover -1- -arrows c- from the vehicle. A second technician is needed for this.

-- Disconnect the connectors from any electrical components.
