Rear Bumper Cover Overview

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Volkswagen R GmbH optional equipment >>R-Line<<

NOTE: Depending on model version, there are minor differences in the rear bumper covers.

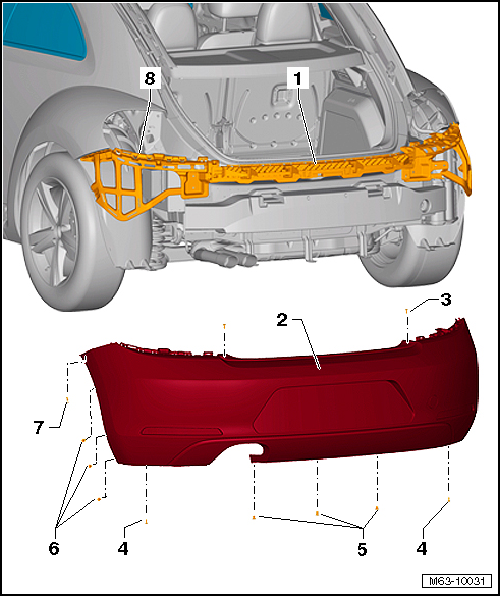

Fig 1: Identifying Rear Bumper Cover Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Center Guide
Rear Bumper Cover
- PP/EPDM material
- Removing and Installing, refer to REAR BUMPER COVER .
Bolt
- 2 Nm
- One on each side
- The tail lamp must be removed before Removing and Installing, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CPRA, CBTA, CPKA, CPLA, CJAA, CBUA, CPPA, CCTA, CBFA] Removal and Installation
Bolt
- 2 Nm
- One on each side
- Rear wheel housing Liner mount on the rear bumper cover
Expanding Rivet
- Quantity: 3
Bolt
- 2 Nm
- Three on each side
- Rear wheel housing liner mount on the rear bumper cover
Bolt
- 2.7 Nm
- One on each side
- An expanding rivet can also be installed
Side Guide
- Left and right
