Transmission Identification

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

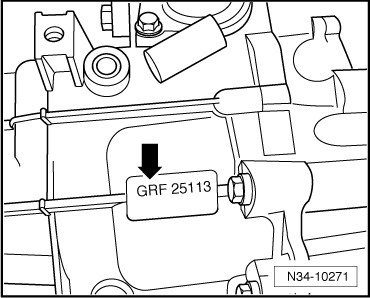

Code letters and build date -arrow 1-, manual transmission 02Q -arrow 2-.

Fig 1: Identifying Location Of Code Letters And Date Of Manufacture Manual Transmission 02Q

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Manual transmission 02Q -arrow 2-

Fig 2: Identifying Transmission Identification - Manual Transmission 02Q

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission code letters and build date -arrow-

Fig 3: Identifying Transmission Code Letters And Date Of Manufacture

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GRF	25	11	3
I	I	I	I
I	I	I	I
Identification codes	Day	Month	Year (2003) of manufacture

For additional data and information contact the factory.

NOTE:

The transmission code is also listed on the vehicle data plate.
