Underbody Panels Overview, Sedan

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The illustration shows the right side. The left side is derived accordingly from this.

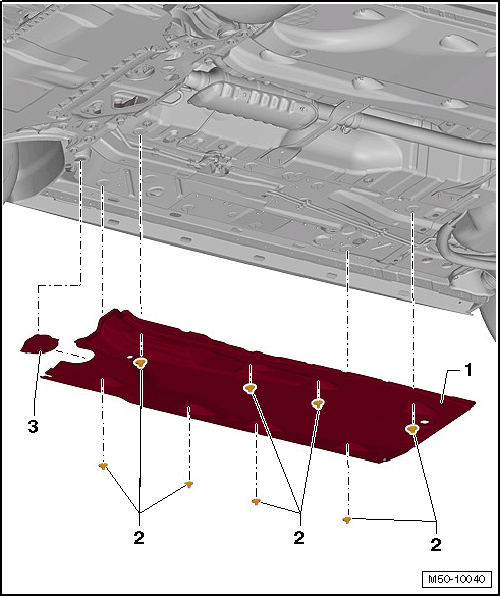

Fig 1: Removing/Installing Underbody Trim Panel
GWWM50-10040Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Underbody Panel
    • Removing:

      -- Remove the nuts -2-.

      -- Pull the underbody panel toward the rear off the cover -3- and remove it.

  2. Nut
    • 2 Nm
    • Quantity: 8
    • Held in place by the tabs on the underbody trim panel
  3. Cover
    • Removing:

      -- Turn the cover 90° counterclockwise.

      -- Remove the cover from the mount.
