Sill Panel Cover

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The illustration shows the left side. The right side is identical.

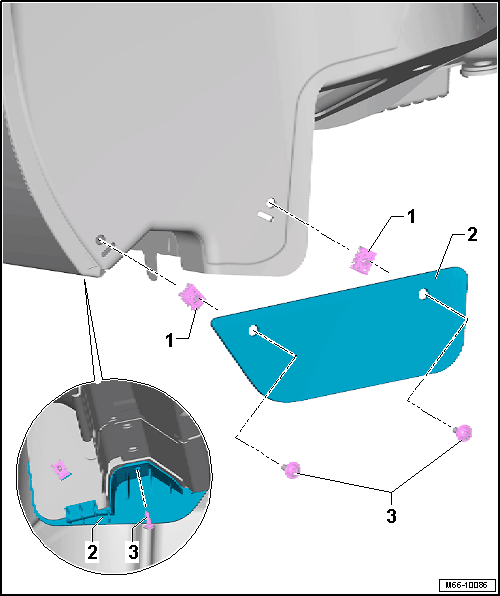

Fig 1: Sill Panel Cover
GWWM66-10086Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Clamping Nut
    • Clip in the rear wheel housing liner.
  2. Sill Panel Cover
    • Removing:

      -- Remove the bolts -3-.

      -- Remove the sill panel cover downward from the rear wheel housing liner.

    • Installing

      -- Slide the sill panel onto the rear wheel housing liner from underneath.

      -- Install the bolt -3- and tighten.

  3. Bolt
    • 2 Nm
    • Quantity: 3
