Emblem "KARMANN"

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Follow the installation instructions, refer to ASSEMBLY INSTRUCTIONS FOR BONDING NAME BADGES .

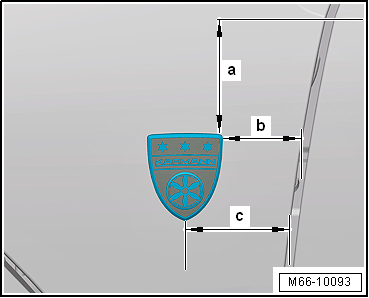

Fig 1: EMBLEM "KARMANN"
GWWM66-10093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE: The dimensions described are only for the left fender. The dimensions for the right fender are identical.

Dimension -a- = 62.5 mm

Dimension -b- = 44.5 mm

Dimension -c- = 58.5 mm
