Front Seat: Removing
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, 2013 Volkswagen Beetle, and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow the General Safety Precautions when working with airbags, belt tensioners and battery cut-out units (pyrotechnic components). Refer to SAFETY PRECAUTIONS
.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
-- Move the seat as far forward as possible using the forward/back adjuster.
-- Remove the bolts -3 and 4-.
-- Move the seat as far back as possible using the forward/back adjuster.
-- Disconnect the battery. Refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CPRA, CBTA, CPKA, CPLA, CJAA, CBUA, CPPA, CCTA, CBFA] Removal and Installation
.
-- Remove the cap/carpet from the coupling station.
WARNING:
Electrostatic discharges can lead to unintended deployment of the airbag. Therefore, mechanic must electrostatic discharge him-/herself before disconnecting harness connector. This is done, for example, by briefly grasping the chassis or door striker.
-- Depending on the vehicle equipment level, disconnect the wiring harnesses from the seat at the coupling station.
-- Remove the bolts -1 and 2-.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

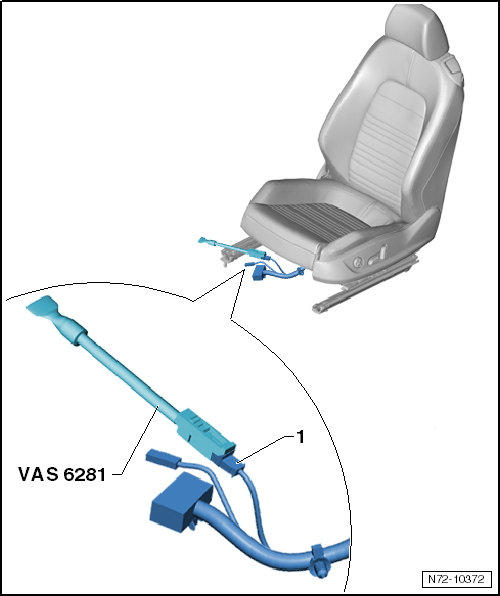

-- Connect the Airbag Lockout Adapter VAS 6281 to the side airbag wiring harness -1-.
CAUTION:
The Airbag Lockout Adapter VAS 6281 must stay connected to seat until seat is installed again.
CAUTION:
If seat is to be lifted out or transported out of the vehicle, it must not be grasped by the attachments, for example, seat belt latch, lever for seat fore/aft adjustment, lever for seat height adjustment or seat trim panels in order to prevent damage.
-- Reach between the backrest and seat cushion with the right hand. Grab the front of the seat cushion with the left hand and lift the seat out of the vehicle.
