Transmission Identification

WARNING: This page is about a different car, the 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

For the correct allocation, refer to CODES LETTERS, ALLOCATION AND CAPACITIES .

Location on Transmission

Code letters and build date -arrow 1- manual transmission 0A4 -arrow 2-

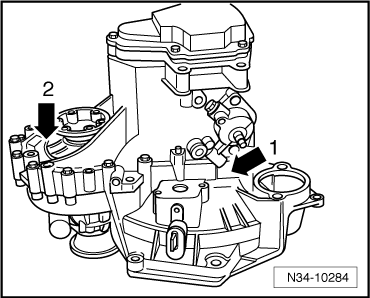

Fig 1: Locating Code Letters And Date Of Manufacture

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Manual transmission 0A4 -arrow 2-.

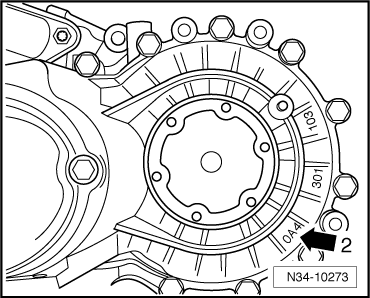

Fig 2: Identifying Code Letters And Date Of Manufacture On Manual Transmission 0A4

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Transmission code letters and build date

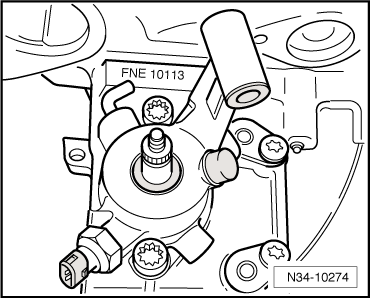

Fig 3: Identifying Location Of Code Letters And Production Date Of Transmission

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

FNE	10	11	3
I	I	I	I
I	I	I	I
Code Letters	Day	Month	Year (2003) of manufacture

For additional data and information contact the factory.

NOTE:

The transmission code is also listed on the vehicle data label.
