CAMSHAFT SEAL VEHICLES WITH "New" SEAL: Notes

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Assembly Tool V.A.G 10-203
Seal Puller T10443
Torque Wrench 5-50 Nm V.A.G 1331/
Torque Wrench 40-200 Nm V.A.G 1332/
M12 X 1.5 x 75 bolt

NOTE:

A new seal -B- is being installed. Visually, it no longer has a closed surface between the camshaft and the cylinder head but rather a hallow channel. A different procedure must be performed. Refer to CAMSHAFT SEAL VEHICLES WITH "New" SEAL .

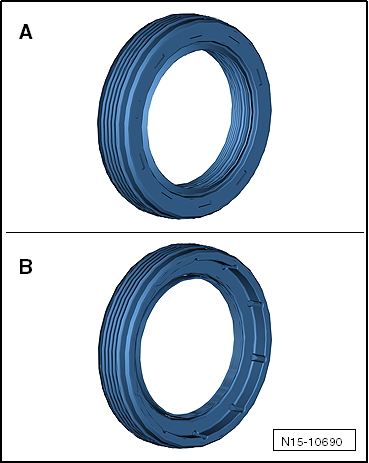

Fig 1: Identifying Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seal -B-

Fig 2: Identifying Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
