VALVETRAIN Overview

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Risk of damaging valves and piston heads after working on valve train.
  • The motor must not be started for about 30 minutes after installing camshafts because the hydraulic equalization elements must seat themselves.
  • To ensure valves do not strike pistons when starting, carefully rotate the crankshaft at least two turns.
NOTE: Cylinder heads with cracks between the valve seats can continue to be used without reducing service life, as long as the tears have a width of maximum 0.5 mm.

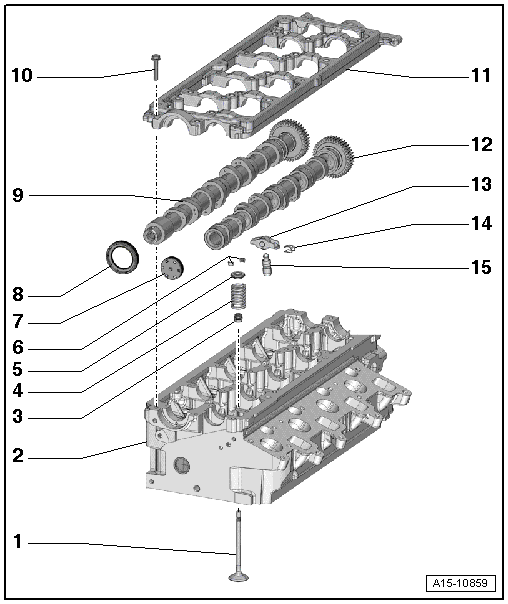

Fig 1: Identifying Valvetrain Overview
GWWA15-10859Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Valve
  2. Cylinder Head
  3. Valve Stem Seal
  4. Valve Spring
  5. Valve Spring Retainer
  6. Valve Keepers
  7. Cover
    • Replace
    • Removing: with the guide frame installed, pierce through one side of the cover with an awl and pry it out.
    • Installing: install without sealing compound and thrust piece
    • Depth 1 to 2 mm
  8. Shaft Seal
  9. Exhaust Camshaft
  10. Bolt
    • Tightening specification and sequence, refer to Fig 2.
  11. Guide Frame
    • With integrated camshaft bearings
    • Tightening specification and sequence, refer to Fig 2.
  12. Intake Camshaft
  13. Roller Rocker Lever
    • Mark the installed position for installation later
    • Check roller for easy movement
    • Lubricate the running surfaces before installing
  14. Clip
    • For hydraulic adjuster
  15. Hydraulic Adjusting Element
    • Mark the installed position for installation later
    • Lubricate the running surfaces before installing
Fig 2: Identifying Bearing Frame Bolts/Nuts Tightening Sequence
GWWN15-10483Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in two steps in the sequence shown.

Stage Bolts Tightening specification
1. -1- through -24- Install the bolts all the way in by hand
  • The guide frame must touch the entire contact surface on the cylinder head.
2. -1- through -24- 10 Nm
