Vacuum Pump: Removing

WARNING: This page is about a different car, the 2013 Volkswagen Beetle and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING .

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP .

-- Remove the nut and ground wire -3- and remove the bolt -4-.

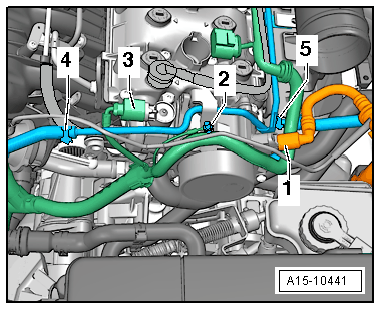

Fig 1: Identifying Vacuum Line, Ground Wire And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the vacuum hose -1- from the vacuum pump.

Fig 2: Identifying Vacuum Pump, Ground Cable, Electrical Connector And Coolant Hoses

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and remove the vacuum pump.

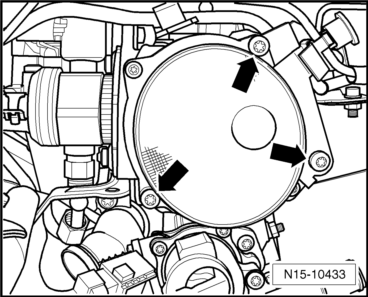

Fig 3: Identifying Vacuum Pump Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE: Do not disassemble the vacuum pump.
