Camshaft Timing Chain: Installing

WARNING: This page is about a different car, the 2013 Volkswagen Beetle and 2012 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal. Note the following:

NOTE:

The help of a second mechanic is needed to install the timing chain.

The painted links of the timing chain must be positioned on the markings on the chain sprockets.

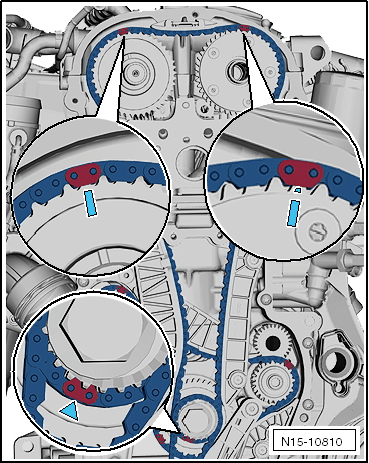

Fig 1: Camshaft Timing Chain Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the timing chain onto the intake camshaft.

-- Position the timing chain onto the exhaust camshaft.

-- Position the timing chain onto the crankshaft and hold it there.

-- Install the camshaft timing chain guide rail and tighten the bolts -A-.

Fig 2: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE: Use the help of a second mechanic to hold the exhaust camshaft in place.

-- Slowly turn the exhaust camshaft in the direction of the arrow -1- until the Camshaft Lock T40271/1 can be pulled from the chain sprocket splines.

Fig 3: Turning Exhaust Camshaft

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully release the camshaft until the camshaft timing chain rests on the upper glide track. Hold the camshaft in this position.

CAUTION: Before installing the tensioning rail, always check whether the painted chain link still aligns with the markings on the camshaft!

-- Continue to hold the camshaft and install the tensioning rail for the camshaft timing chain. Tighten the bolt -A-.

Fig 4: Camshaft Lock - Component 1 T40271/1 On Cylinder Head

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Camshaft Lock T40271/1.

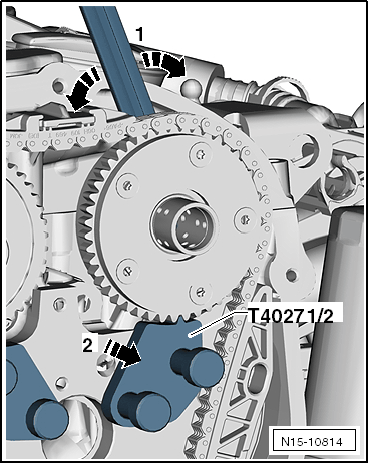

-- Slide -2- the Camshaft Lock T40271/2 out of the chain sprocket splines. If necessary, slightly turn the intake camshaft with the wrench -1-.

Fig 5: Camshaft Locks - Component 2 T40271/2 Out Of Chain Sprocket Spline

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Camshaft Lock T40271/2.

-- Remove the Locking Pin T40011 or the Tensioner Locking Tool T40267, depending on the version.

-- Check that the position of the colored chain link is aligned to the markings.

Fig 6: Checking Position Of Colored Chain Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the drive chain for the oil pump and the chain tensioner. Tighten the bolt -1- and remove the Locking Pin T40011.

Fig 7: Identifying Oil Pump Chain Tensioner And Locking Pin T40011

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts -arrows- and tighten them.

Fig 8: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully attach the bearing bracket. Do not tilt it when doing this. Hand-tighten the bolts -arrows-.

Fig 9: Locating Bearing Bracket Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bearing bracket bolts -arrows-. Refer to CAMSHAFT TIMING CHAIN OVERVIEW .

-- Install the control valve -item 6-.

NOTE: Due to the ratio, the painted chain links no longer align after turning the engine. For this reason, the valve timings must be checked again with the gauge.

-- Turn the engine two times in direction of engine rotation and check the valve timing. Refer to VALVE TIMING, CHECKING .
