Checking the Valve Timing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: There is a risk of damaging the engine by the toothed belt jumping off.

Only rotate the crankshaft in the direction of engine rotation.

-- Turn the crankshaft by the toothed belt pulley bolt two turns in the direction of engine rotation until the crankshaft is once again just before "TDC".

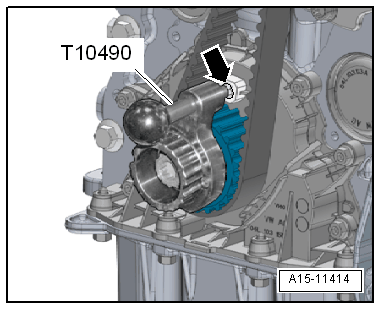

-- Mount the Crankshaft Lock T10490 on the crankshaft toothed belt gear.

Fig 1: Identifying Crankshaft Lock T10490

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the crankshaft in direction of engine rotation, until the tip -arrow- on the crankshaft stop fits into the sealing flange.

CAUTION: An inaccurate "TDC" setting will cause an inaccurate setting.

If the crankshaft was turned past "TDC" : Turn the crankshaft again two turns until it is just in front of "TDC." Then secure the crankshaft from moving using the Crankshaft Lock T10490.

It must be possible to secure the camshaft hub with the Diesel Injection Pump Locking Pin 3359.

Fig 2: Identifying Diesel Injection Pump Locking Pin
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

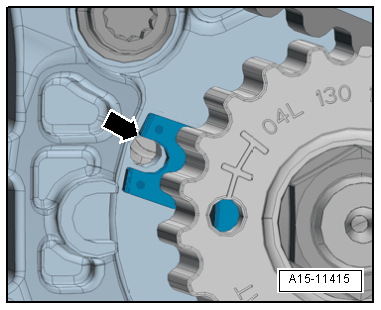

It is very difficult to find the locking point on the high pressure pump hub. A small deviation -arrow- does not affect engine operation.

Fig 3: Identifying Small Deviation
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

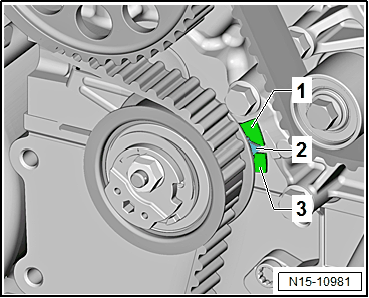

The pointer on the tensioning roller -2- must be in the middle between the tabs -1- and -3- on the plate.

Fig 4: Identifying Tensioning Roller
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE: Permissible lateral offset: maximum 5 mm.

If the conditions are met, then continue with the correct valve timing, refer to Correcting The Valve Timing .

If the conditions are not met, correct the valve timing, refer to Correcting The Valve Timing .
