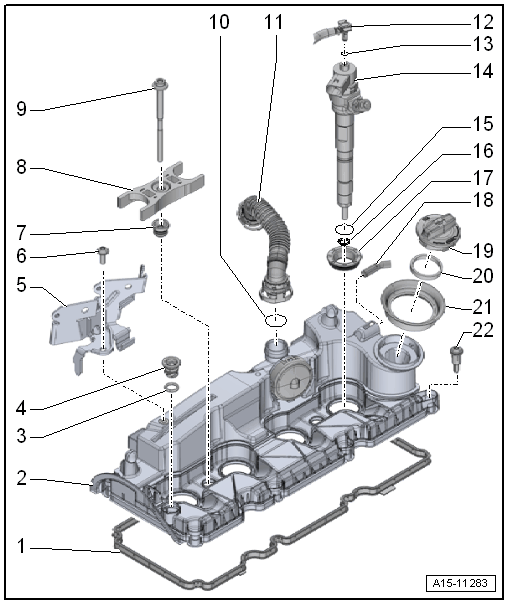

Overview - Cylinder Head Cover
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
- Seal
- Replace if damaged or leaking
- Cylinder Head Cover
- Removing and installing, refer to CYLINDER HEAD COVER .
- O-Ring
- Replace after removing
- Plug
- Bracket
- For electric wires
- Bolt
- 8 Nm
- Grommet
- In the cylinder head cover
- Tensioning Claw
- Bolt
- Tightening specification, refer to OVERVIEW - FUEL INJECTORS
- O-Ring
- Replace after removing
- Hose
- For the crankcase ventilation
- For removal, press the release button
- Fuel Return Line
- O-Ring
- Replace after removing
- Injector
- Follow the guidelines for clean working conditions, refer to CLEAN WORKING CONDITIONS .
- Overview, refer to OVERVIEW - FUEL INJECTORS .
- O-Ring
- Replace after removing
- Heat Protection Seal
- Replace after removing
- Seal
- For fuel injector
- Replace after removing, refer to FUEL INJECTOR SEALS .
- Vacuum Hose
- Cap
- Seal
- For the cap
- Grommet
- Bolt
- Replace if the seal is damaged
- Tightening specification and sequence, refer to Fig 2.
-- Tighten the cylinder head cover bolts in the sequence -1 to 7-.
| Step | Bolts | Tightening specification |
|---|---|---|
| 1. | -1 to 7- | 9 Nm |
