Upper Timing Chain Cover: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Replace gasket

CAUTION:

Risk of contaminating lubrication system with sealant residue.

Lay clean cloth over open part of cylinder head.

-- Remove sealant residue on the bearing bracket.

-- Clean any oil or grease off the sealing surfaces.

NOTE:

Be sure to check the expiration date of the sealant.

-- Cut the tube nozzle at the front marking (nozzle diameter: approximately 1.5 mm).

Fig 1: Cut Tube Nozzle At Front Marking (Nozzle Diameter Approx. 1 Mm)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The lubrication system could be plugged with excess sealant.

Do not apply sealant bead thicker than indicated.

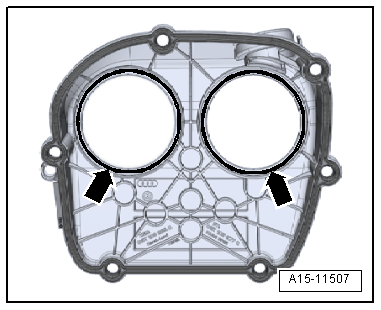

-- Apply sealant beads -arrows- to the clean seals as shown in the illustration.

Fig 2: Identifying Sealant Beads

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The illustration shows a cover with two camshaft adjuster valves.

Only Camshaft Adjustment Valve 1 -N205- is installed.

Thickness of sealant beads: 2 mm.

NOTE:

After applying the sealant, install the upper cover for the timing chain within five minutes.

-- Install the timing chain upper cover, tightening sequence, refer to Figure.

-- Install the Camshaft Adjustment Valve 1 -N205-, refer to CAMSHAFT ADJUSTMENT VALVE 1 -N205- .
