Lower Timing Chain Cover: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove right front wheel housing liner, refer to FRONT WHEEL HOUSING LINER .

-- Remove the engine support, refer to ENGINE SUPPORT .

-- Remove the ribbed belt tensioner, refer to RIBBED BELT TENSIONER .

CAUTION:

Danger of causing damage to the engine.

In order not to change the valve timing, the crankshaft must not be moved out of the "TDC" position when the vibration damper bolt is removed.

-- Remove the vibration damper, refer to VIBRATION DAMPER .

NOTE:

To avoid damaging the splines, only install the vibration damper bolt with the Press Piece - Timing Chain Cover T10368.

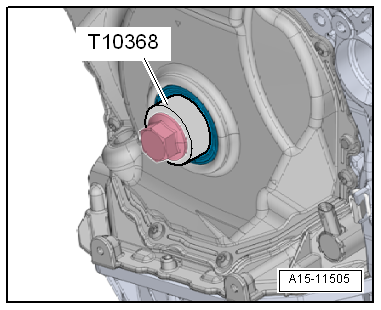

Fig 1: Identifying Thrust Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the vibration damper bolt and Press Piece - Timing Chain Cover T10368 again.

-- Free up the clip -2- for the electrical wiring harness.

Fig 2: Identifying Oil Dipstick Guide Tube

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Unclip the guide tube from the timing chain upper cover in the direction of -arrow-.

-- Remove the guide tube from the timing chain guard.

-- Remove the bolts -1- through -8-.

Fig 3: Identifying 8 Bolt Timing Chain Lower Cover Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry off the lower timing chain cover.
