Camshaft Adjustment Valve 1 -N205-: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER .

-- Unclip the coolant and fuel lines and set them aside.

-- Disconnect the connector -1- from the Camshaft Adjustment Valve 1 -N205-.

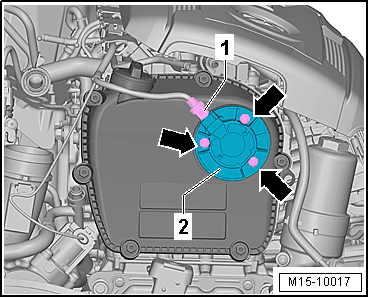

Fig 1: Identifying Bolts And Camshaft Adjustment Valve 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -arrows- and then the Camshaft Adjustment Valve 1 -N205- -2-.
