Balance Shaft Drive Chain: Installing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Intermediate Shaft Sprocket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the intermediate sprocket and balance shaft to the markings -arrow-, do not loosen the bolt -1-.

NOTE:

The painted chain links -arrows- in the balance shaft drive chain must be positioned at the markings on the chain sprockets.

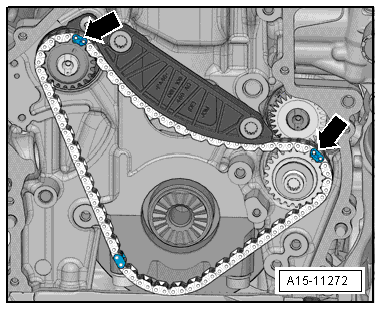

Fig 2: Identifying Painted Links

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lay the balance shaft drive chain, the painted links -arrows- must be positioned with the markings on the chain sprockets.

-- Install the timing chain guide rail and tighten the bolts -3-.

Fig 3: Balance Shaft Timing Chain, Tensioning Rail And Guide Rails

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install chain tensioner -1- for camshaft timing chain.

Fig 4: Bolts And Chain Tensioner

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install camshaft timing chain, refer to CAMSHAFT TIMING CHAIN .
