Side Vents: Removing
WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side instrument panel covers. Refer to REMOVAL AND INSTALLATION .
Vehicles with electronically controlled A/C system
-- Remove the Left Vent Temperature Sensor -G150- or the Right Vent Temperature Sensor -G151-. Refer to LEFT VENT TEMPERATURE SENSOR -G150- .
All vehicles

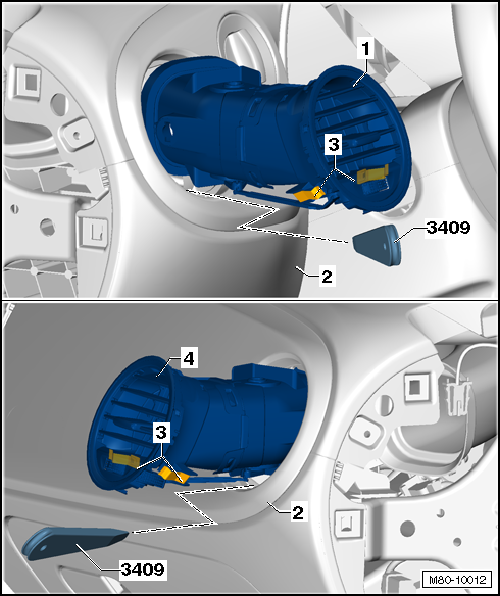

-- Reach into the side opening of the instrument panel -2- with one hand and push the side vent -1- or -4- slightly in the direction of the passenger compartment. By hand or with the Trim Removal Wedge 3409 as support, loosen the side vents -1- or -4- out of the retainers -3- from the outside.
-- Remove the side vents -1- or -4- from the instrument panel -2-.
