High Pressure Line Between The High Pressure Reservoir (Rail) And The High Pressure Pump, Removing: Removing
WARNING: This page is about a different car, the 2015 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Danger of malfunction caused by dirt.
- Follow the guidelines for clean working conditions, refer to CLEAN WORKING CONDITIONS .
-- Follow the guidelines for clean working conditions, refer to CLEAN WORKING CONDITIONS .
-- Remove the engine cover, refer to ENGINE COVER .
-- Clean the fuel line and line connection with detergent and dry it with compressed air.

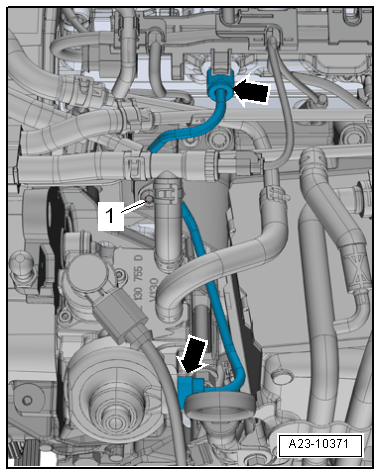

-- Remove the bolt -1-.
-- Remove the union nuts -arrows- and then remove the high pressure line.
