Special Tools

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Hand Vacuum Pump VAS 6213

Fig 1: Hand Vacuum Pump VAS 6213
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Tester for fuel return system VAS 6330 (not illustrated)
Hose Clip Pliers VAS 6362

Fig 2: Clamp Pliers VAS 6362
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine bung set VAS 6122 (not illustrated)
Ratchet, Reversible V.A.G 1331/1
Engine Bung Set VAS 6122
Ring Spanner 7-Piece Set 3337

Fig 3: 3337 Oxygen Sensor Ring Spanner
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench V.A.G 1783

Fig 4: Identifying Torque Wrench (2 to 10 Nm) VAG 1783
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cutting grinder, for example Axial Grinder VAS 6682

Fig 5: Identifying Fuel Injection Removal/Installation Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Puller T10055 with Adapter T10055/1
Thrust Piece T10377
Socket T40055
Torque Wrench 5-50 Nm V.A.G 1331
Ratchet, Reversible V.A.G 1331/1

Fig 6: Identifying Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

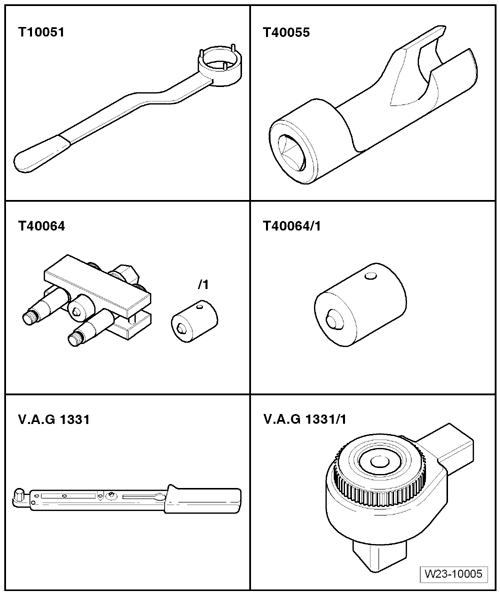

Special tools and workshop equipment required

Camshaft Gear Counter-Holder T10051
Socket T40055
Puller T40064
Thrust Piece T40064/1
Torque Wrench 5-50 Nm V.A.G 1331
Ratchet, Reversible V.A.G 1331/1

Fig 7: Identifying Special Tools And Workshop Equipment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

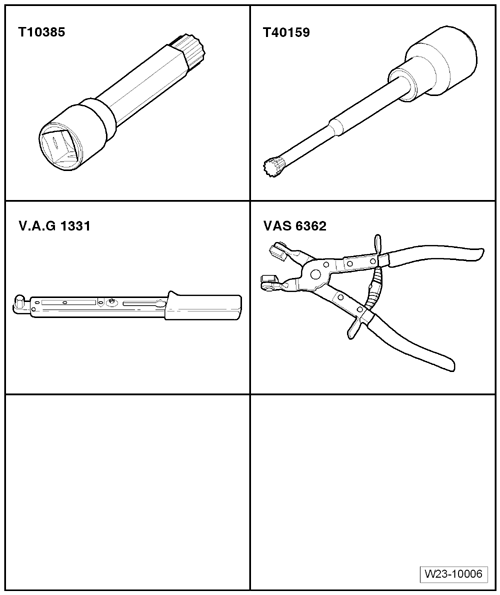

Special tools and workshop equipment required

Socket Insert XZN 10T10385
Socket XZN 8T40159
Torque Wrench 5-50 Nm V.A.G 1331
Hose Clip Pliers VAS 6362
